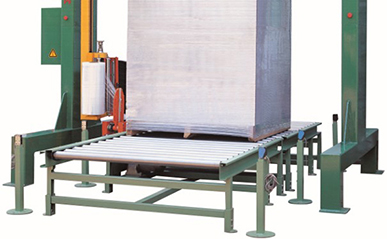

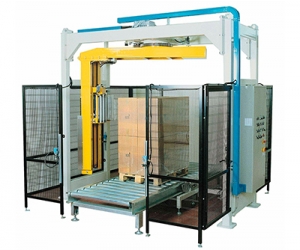

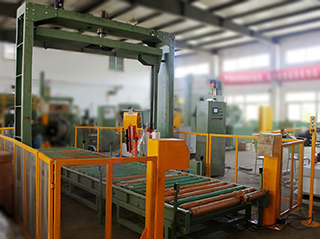

Rotate arm stretch wrapping machine

Rotate arm wrapping machine, rotate arm stretch wrapper

Information:

The machine is used to pack goods on the stack with PE Stretch Film, which makes the goods stable, tidier; also waterproof and dust proof. And it can lessen the labor density; improve work efficiency, so it is perfect packing equipment and is ideal for modernized plants in industries such as food & beverage, chemicals, paper making, building materials, electric &electronics, etc.

Description :
The machine consists of frame, rotary wrapper, motorized conveyors, auto film apply& cut device and control box.

FEATURES: Control System:

² PLC is adopted for electrical control.
² Unmanned working mode. All steps include feeding film, wrapping, cutting, film smoothing, conveying package are finished automatically.
² Separate control panel makes operation and maintenance easily.
² Can set special wrapping position (top, middle, and bottom) reinforcement.
² Turntable position reset automatically.
² Separate start, stop and emergency stop buttons.
² Automatic pallet height detection by photocell sensor.
² Variable turntable speed controlled by frequency converter.

Rotary Arm System:
² Rotation speed: 10-14rpm speed variable through inverter.
² Soft start & soft stop.
² Drive motor output: 0.75kw.
² Highly sensitive brake system.
² Rotary arm home position & film change location for easy operation.

² Pre-stretch can adjust as your requirement.
² Film delivery variable speed by separate motor
² Powered pre-stretch system up to 200% to reduce film consumption.
² Many protection functions, more safety & reliable.
² Can set packing types automatically & manual operation also.
² New design, firm & durable, easy for after-service & maintenance.
² Can start/stop/reset freely.

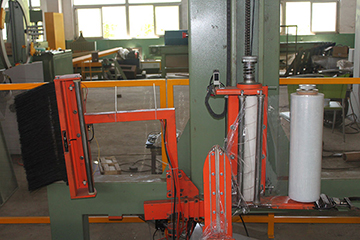

Film Clamping/Cutting/wiping System:
² Pneumatic film cut & wipe system.
² The process of film clamping, cutting and wiping finished automatically.
² Film clamper mode: scissors like gripper bars
² Cutting method: instant heating wire
² Wiping system: soft brush to stick the film perfectly onto the pallets
² Automatic film clamper/wipe/cut driven by air cylinders
² Air pressure: 6-8kgf/cm2

Conveyors
² Heavy Structural steel Frame construction.
² For pallet with Max. width 1200mm
² All rollers driven.
² Heavy duty conveyor guards.
² Different roller diameters and roller spacing available for different applications.
² Conveyor Speed: app.12m/min (other speed available)
² Photo-eye for pallet sensing and sequencing

Safety protection
² Alarming indicator alarms automatically when trouble occurs.
² Emergency stop button in both operation panel& column in case emergency occurs.
² Outside protection guardrail to ensure safety of the operator.
