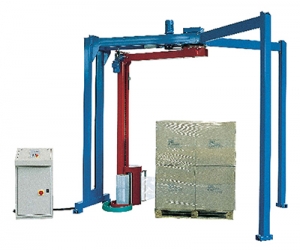

Semiauto rotate arm stretch wrapping machine

rotate arm stretch wrapper, semiauto rotate arm pallet wrapper

The machine is used to pack goods on the stack with PE Stretch Film, which makes the goods stable, tidier; also waterproof and dust proof. And it can lessen the labor density; improve work efficiency, so it is perfect packing equipment and is ideal for modernized plants in industries such as food & beverage, chemicals, paper making, building materials, electric &electronics, etc.

Technical data:

The machine consists of frame, rotary wrapper , auto film apply& cut device and control box.

FEATURES: Control System:
² Separate control panel makes operation and maintenance easily.
² Can set special wrapping position (top, middle, and bottom) reinforcement.
² Turntable position reset automatically.
² Separate start, stop and emergency stop buttons.
² Automatic pallet height detection by photocell sensor.
² Variable turntable speed controlled by frequency converter.
Rotary Arm System:
² Rotation speed: 10-14rpm speed variable through inverter.
² Soft start & soft stop.
² Drive motor output: 0.75kw.
² Highly sensitive brake system.
² Rotary arm home position & film change location for easy operation.
Film Carriage system:
² Pre-stretch can adjust as your requirement.
² Film delivery variable speed by separate motor
² Powered pre-stretch system up to 200% to reduce film consumption.
² Many protection functions, more safety & reliable.
² Can set packing types automatically & manual operation also.
² New design, firm & durable, easy for after-service & maintenance.
² Can start/stop/reset freely.
