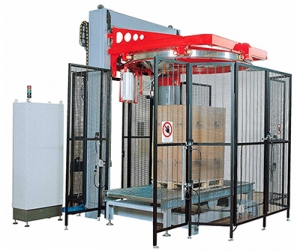

Rotate ring stretch wrapping machine

rotary ring stretch wrapper, Automatic ring stretch wrapping machine

The rotate ring stretch wrapper is a fully automatic pallet stretch wrapping machine which is the latest technology and the reliable method. The wrapping film is fixed on the ring and it fast turning. The ring is raised and lowered for pallet wrapping according control program. The pallet remains stationary that is a packing method makes the wrapping of unstable and good for light weight products. There are no centrifugal forces to cause stress or strain on the pallet or on the equipment. Wrapping can be started and finished at any position in the vertical direction and any height by sensor. The rotate ring stretch wrapper provides film pre-stretch device. The performance system reduces film costs, eliminated downtime and simplifies maintenance. Besides there is about to provided top sheet dispenser for automatic weather-proofing.

Feature:
1. Proven construction—durable frame structure with well balance ring
2. Minimizes maintenance.
3. Save time, money and space
4. Accommodates wide range of pallet
5. Fast wrapping speed.

Data:

Max. Loading: 2000kg weight capacity (Optional heavier weight capacity).
Film: width 500mm  Powered Pre-Stretch Film carriage
Speed: Up to 70 loads per hour.
Photo-Eye for Variable Load Height detection.
Pallet Size:  1400x1400x1800mm
Turning speed: 21 RPM (higher speeds are available).
PLC: Siemens
HMI. Siemens
Rotating Steel Ring for carriage support.
Control: Automatic PLC
Warranty:1 year

 The real key to Action Controls rotary ring stretch wrapping machine long term good results is straightforward. Our company offers nicely-engineered solutions, take note of our customers' needs and deliver outstanding services for the techniques. Our clients love a high level of customer service and support and keep coming back for first time systems. We continue to create technology and add new specialized apps that assist keep our customers very competitive.
