Máquina Envolvedora de Puerta

Door wrapping machine, Door stretch wrapper, Profile wrapping machine ,

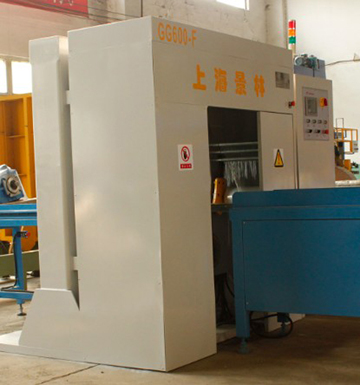

Door Wrapping Station:
Double-ring & double-rub wheel devices make working more safe stable & energetic.
Friction between driving wheels and ring is adjustable.
Speed of the ring is adjustable by inverter.
Soft start and start.
Wrapping position reset.
Packing material tension could be adjusted.
Widely packing material adopted by material frame.
Protect guardrail for safety operation.
All moving parts in closed structure for safety operation.
Overlapping is adjustable from 10%-90%

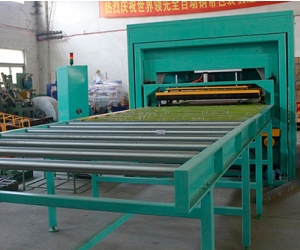

Conveyor System:
PVC belt conveyors for protecting the surface of the product.
Automatic entrance conveyor system and outlet conveyor system.
Conveyor adjustment function.
Conveyors drive by motor with gear box.
Speed of the conveyors is adjustable by inverters.
Sensor detecting the objects for operation action.
Height of conveyor adjustable.

Automatic wrapping protective System:
Sponge rollers for surface protection.
Decompression system for right press.
Automatic protective devices are able to avoid products shaking in wrapping.
Pressing down device and supportive rollers for fix the packaging position.
The action time is adjustable for difference packing purpose.
Two sets of press down device.
Two sets of the right and left protect device

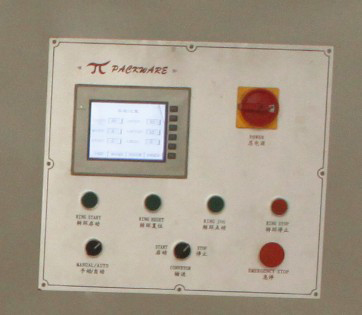

PLC&HMI control system:
PLC and program makes machine able to do automatic wrapping according your packing goal.
Photocell sensor is adopted for setting packing position.
Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
Separate control panel makes operation & maintenance easily.
Interface operation.

Automatic mechanical hand:
Automatic material feeding and cutting device.
Automatic material clamping for next wrapping.
Sensor and PLC program.
This device makes machine automatically and unmanned operation.

Technical parameter:
Object size:
Length:>1200mm
Width: 500-1500mm
Height: 30-100mm
Entrance conveyer length: 2500mm
Outlet conveyer length: 2500mm
Speed: 4~15m/min
Ring speed: 10-70r/min
Power output: about 4.5kw
Power voltage: AC 380v,60Hz,3Phase
Material:
LLDPE stretch film/PE film/PVC
Width: 300mm
OD: 200-300mm
ID: 50mm
