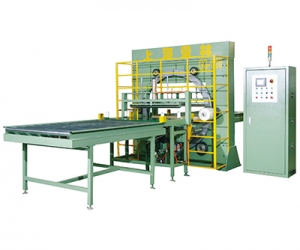

Board stretch wrapper, profile stretch wrapping machine, door spiral wrapper
Specifications
Board wrapping machine for horizontal shapes is mainly designed for metallurgical industries. The machine can be widely used in the exterior wrapping such as shapes like bar floor board, wooden board, etc. The main purpose is that the wrapping make the board sealed well, and keeps it in a good condition.
Features:
*Adopting PLC&HMI makes the machine smarter.
*Double-ring & double-rub wheel devices make the work safer, more stable and efficient;
*Special conveying device is easy for loading & conveying the package, and also can strengthen the transfer capacity;
*Wide packing belt can be used for cutting the packing cost & making the work more efficient;
*Indicator alarms can automatically show the trouble;
*Photocell sensor is adopted for setting packing position;
*The turning ring is controlled by a converter. Overlap rate can be adjusted according to the requirement;
*Separate control panel makes operation & maintenance easily;
*Height of the ring centre can be adjusted according to the diameter of the product;
*Material tension can be adjusted automatically.
Technical Data:
|
Items |
GG500 |
GG800 |
GG1000 |
GG1600 |
|
Package width |
100-500mm |
100-800mm |
100-1000mm |
100-1600mm |
|
Package length |
Not limited |
Not limited |
Not limited |
Not limited |
|
Conveyer length |
9000mm*2 Or on request |
9000mm*2 Or on request |
9000mm*2 Or on request |
9000mm*2 Or on request |
|
Conveying speed |
About 8m/min |
About 7m/min |
About 6m/min |
About 4m/min |
|
Rotating speed |
About 60r/min |
About 50r/min |
About 45r/min |
About 30r/min |
|
Conveyer height |
800mm |
1000mm |
1000mm |
1200mm |
|
Max loading |
2000kg |
3000kg |
4000kg |
5000kg |
|
Overlap scope |
About 30%-70% |
About 30%-70% |
About 30%-70% |
About 30%-70% |
|
Power output |
About 7kw |
About 9kw |
About 12kw |
About 16kw |
|
Power voltage |
380V/3phase/50Hz |
380V/3phase/ 50Hz |
380V/ 3phase/50Hz |
380V/3phase/50Hz |
|
Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax |
Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax |
Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax |
Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax |
|
Material size |
width:≤250mm Max OD:400mm ID:55mm |
width:≤250mm Max OD:400mm ID:55mm |
width:≤250mm Max OD:400mm ID:55mm |
width:≤250mm Max OD:400mm ID:55mm |
