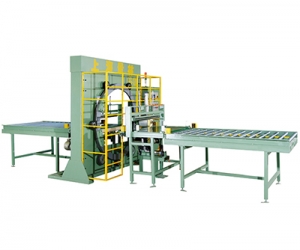

Horizontal stretch wrapper, horizontal stretch wrapping machine
Application:
The
horizontal stretch wrapping machine is specialized for exterior wrapping horizontal objects such as
pipe bundle, profile, section, boards & etc. The wrapped package is no
limited for length. It is easy for transportation and storage.
Features:
1 PLC & HMI are adopted.
2. indicator will automatically alarm when problems occur. The problems can be shown.
3-wheel mechanism of friction that work more secure, stable and energetic.
4 rollers, belt and rack can be chosen for the transport lines.
5 photocell sensor is adopted to establish the position of packing.
6. adopted special tension device.
7. ring height can be adjusted for different objects of ID and OD.
8 manipulator could be chosen for food and film cutting, safe and efficient.
9 press rollers and roller side protection could adopt to pipeline simple or lightweight object.
Short 10.Objetos can also be wrapped as the machine has wide application.
Datos Técnicos:
Type | GG500 | GG800 | GG1000 | GG1600 |
OD | 100-500mm | 100-800mm | 100-1000mm | 100-1600mm |
Length | No limited | No limited | No limited | No limited |
Conveyor | 9000mm*2 | 9000mm*2 | 9000mm*2 | 9000mm*2 |
Conveyor speed | app. 8m/min | app.8m/min | app. 8m/min | app. 8m/min |
Ring speed | app. 60r/min | app. 50r/min | app. 45r/min | app. 30r/min |
Min. Length | 800mm | 1000mm | 1000mm | 1200mm |
Max. Loading | 2000kg | 3000kg | 4000kg | 5000kg |
Overlapping | app. 30%-70% | app. 30%-70% | app. 30%-70% | app. 30%-70% |
Power Supply | app. 3kw | app. 4kw | app. 5kw | app. 8kw |
Power Supply | 380V/3P/50Hz | 380V/3P/ 50Hz | 380V/ 3 P /50Hz | 380V/3P/50Hz |
Material | Cinta de papel compuesta/cinta tejida /cinta anticorrosiva/cinta impermeable/ película estirable/lino | Cinta de papel compuesta/cinta tejida /cinta anticorrosiva/cinta impermeable/ película estirable/lino | Cinta de papel compuesta/cinta tejida /cinta anticorrosiva/cinta impermeable/ película estirable/lino | Cinta de papel compuesta/cinta tejida /cinta anticorrosiva/cinta impermeable/ película estirable/lino |
Material size |
Width:≤250mm Max OD:400mmmmmm
Width:≤250mm | Max OD:400mm m m
Width:≤250mm | Max OD:400mm m m
Width:≤250mm |
Max OD:400mm m m ID:55mm |
