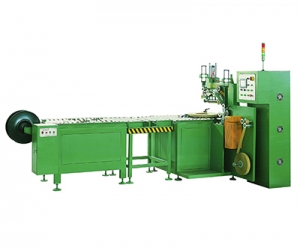

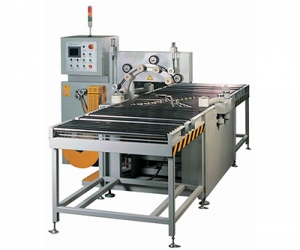

Máquina Embaladora de Cobre GW1200

Máquina Embaladora de Bobina de Cobre, Línea de Embalaje de Bobina de Cobre

Application:

GW series copper coil packing machine for copper coils was designed mainly for metallurgical industries. Our products are CE ,ISO 9001 approved. The machine could be widely used in the exterior wrapping, packing and special design for copper coil, steel coil and wire coil. The wrapped package is well protected and sealed, it also looks tidy.

1. Safety, convenient , automation can realize

2. The components of well known brands are adopted in this copper coil wrapping machine.
3. The overlap of packing tape can be adjusted by inverter.
4. Level height of turning ring can be adjusted to suit different size of the article.
5. Packing tape tension can be adjusted.
6. Supporting rollers are covered by polyurethane.
7. The converter is adopted to adjust the overlap rate of wrapping tape according to the requirements.
8. Wrapping tape tension can be adjusted automatically.
9. Up and down supporting rollers are available.
10. Separate electrical box is provided for safe operation, technical testing and trouble-shooting.
11. Separate material carriage and cutter device will make the packing process more efficiency.
12. Automatic packing material cutting in wrapping.
13. PLC and HMI systems are adopted for packing program setting and calculate the usage of the packing material by entering ID, OD, WIDTH and WEIGHT automatically and easily.
14. Pushing device for easily unloading.

Datos técnicos:

ARTÍCULOS	GW600	GW900	GW1200
Altura de objeto	≤300mm	≤300mm	≤300mm
OD de obejto	≤600mm	≤900mm	≤1200mm
ID de objeto	≥200mm	≥300mm	≥300mm
Peso de objeto	≤250kg	≤400kg	≤600kg
Cinta de embalaje	Pp cinturón tejido / papel	Pp cinturón tejido / papel	Pp cinturón tejido / papel
Velocidad de anillo	30~60r/min	30~50r/min	30~40r/min
Altura de nivel de trabajo	900mm	1000mm	1200mm
Alcance de traslapado	30%~70%	30%~70%	30%~70%
Salidad de potencia	Acerca de 1.5kw	Acerca de 1.5kw	Acerca de 2.0kw
Suministro de potencia	380V, 3 fases 5 cables	380V, 3 fases 5 cables	380V, 3 fases 5 cables
Fuente de aire	6~8kgf/cm²	6~8kgf/cm²	6~8kgf/cm²
