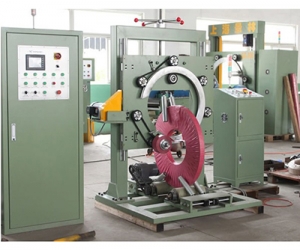

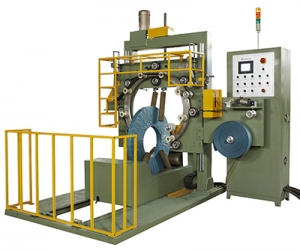

Máquina Embaladora de Bobina de Cobre GS300

Máquina Embaladora de Bobina de Cobre, Máquina Embaladora de Cobre

Notas del producto:
Detalles Técnicos paraGS350
Máquina Embaladora

Basic characteristics:

1. Excellent collections. Well-known brands are adopted for main components.

2. The overlap of packing tape can be adjusted by inverter.

3. Speed of ring adjusted by inverter.

4. Speed of rollers adjusted by inverter.

5. Level height of turning ring can be adjusted to suit different size of the article.

6. Packing tape tension can be adjusted.

7. Difference packing material can be choosing.

8. Automatic packing material cutting(but film).

9. Supporting rollers are covered by polyurethane to protect the surface of coils.

10. Up and down supporting rollers are available.

11. Separate electrical box for safe operation and technical testing and trouble-shooting.

12. Pushing device for easily loading and unloading(option).

13. PLC controller, Touch screen, HMI for automatic and manual operation (option).

Technical data :

Object weight:20-100kg

Package width: 50-350mm

Package OD: 700-1000mm

Package ID: 300-400mm

Roller Speed: 2-4m/min

Wrapping speed: 35-50sec/pcs

Rotating speed: 40-60r/min

Overlap scope: 30%-70%

Power output: app. 1.4kw

Power voltage: 380v/50Hz

Air supply:6-8kgf/cm2

Packing material:

NYLON

ID:55mm OD:450mm  Width:90mm

PE STRETCH FILM

ID:55mm  OD:200mm  Width:90mm
