PPR/PVC Pipe bundling machine

Machinery for pipe bag filling packaging

Function:

Full automatic packing and bag-filling machine suitable for PCV, PP - R and Plexiglas pipes ranging from min. length 1.000 to max. 3.000 mm (max. 6.000 mm on request). Protection of the pipes against any environmental impact with dust-rust, anti-moisture. Package is easy storage and distribution.

Online operation. pipe number and the bundle shape according to the pipe diameter. Pipe - filling into welded PE or PP film bag. Working cycle: - the pipes from the extrusion line are received one by one; - the machine counts, levels and orders the pipes according to the bundle to be produced; - the pipe bundle is conveyed into the film welding and bag filling station; - the pipe bag is transported to the line end and then it is tilted up. On request the machine may be matched with the following devices: - strapping machine which straps the pipe bundle before it enters the film welding and bag filling station. Possibility to set pipe number and bundle shape, number of the bundle and their position; - labeling machine which automatically sticks adhesive labels showing bar codes or any other production data.

  2. Bundling system Automatic pipes aligning, stringing, strapping system.
Features:
a) Excellent collections. Well-known brands are adopted for main components.
b) Ring speed adjustable by convertor.
c) Roller speed adjustable by convertor.
d) PLC&HMI program control.
e) Manual and automatic working mode can be choosing.
f) Pipe aligning device for keeping the orderly tip.
g) The pipes are parallel without cross.
h) Supporting rollers are covered by polyurethane
i) Stringing device adjustable per size of the pipe and bundle.
j) Automatic strapping for stringing pipes.
k) Strapping belt is adjustable per requirement.
l) Strapping position reset
m) The bundling system is adjustable for different pipe length.
n) Pipe are paralleled in strapped bundle.

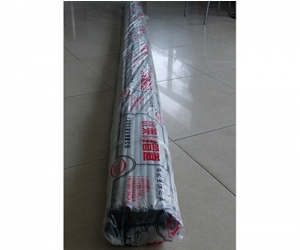

  Bundle Size： Length：4000mm and 6000mm
Pipe and bundle information
(can be designed per specification):20mm 25pipes ,
32mm 20pipes ,
40mm 15pipes ,
50mm 10pipes ,
63mm 10pipes
Bundle OD: 150-200mm
Conveying speed：1-10m/min
Bundling speed: app. 3-4 bundle/min.
Power supply：AC,380V, 50Hz
3. Automatic conveying
Automatic conveying the pipe bundle to the gathering position.
Basic characters:
a) PLC program control.
b) Supporting rollers are covered by polyurethane
c) Automatic package outlet.
d) Speed is adjustable
