Horizontal coil packaging line

Automatic steel coil packaging line, copper coil packaging line

Features:

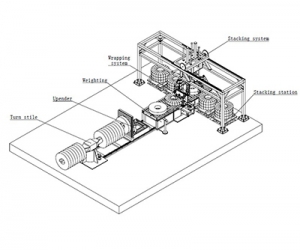

The packaging system includes Turnstile, a horizontal coil wrapping machine Conveyor Roller, Automatic Packaging Machinery, Conveyor Weighing, Automatic Stacking System. The tourniquet load the slotted coil slitting line, coil separated by coil lifter and fork from portrait to landscape, then turning 90 degrees, the coil will be carried forward to the conveyor weighing device. After weighing, the coil is carried forward to the wrapping station for packaging. When finished, the coil moves forward to the stack conveyor to the stacking process, and the stacked coil one wooden frames pallet so on for the next batch of coils.

Detailed Description of the separate part of the system:
Ⅰ. Turnstile
Precise positioning.
Hollow structure in arm for welding coil.
Structure Crossing.
Turnstile arm length: 1350mm
Otros.

Ⅱ.Coil Tilter
function:
The device separates the reels from the transverse arm and one at most of the coil turns 90 degrees. The device has the function of transport.

Basic features:
Directly connected to the tourniquet with easy and effective use.
Type spend inside the coil lifting device is integrated with the tourniquet.
Separating the coils with different width precisely tourniquet.
The coils are in a relatively stationary state, which prevent the surface of the coils being damaged.
This device can be used separately or with the wrapping machine equipped.
Basic technical parameters:
Deconducir mode: Combined hydraulic and mechanical
Control: PLC and HMI are adopted

Ⅳ. Automatic coil wrapping machine
Function: automatically coil wrapping
Basic features:
automatic operation
Packing tape is fed and secured with mechanical hand
PLC&HMI operation.
Manual / auto mode to choose.
Frequency control of engine speed, rate of overlapping may be adjusted according to the requirements
Simple operation by introducing objects OD, ID, and the fixed width parameter, the system calculates the parameters PLC relevant packing.
Automatic positioning, automatic cutting.
Indicator alarm automatically when problems occur. Problems can be displayed automatically.
Novel design, material strain could be adjusted automatically.
The surface of the conveying rollers are enclosed by polyurethane.
Adopted separate control cabinet, which makes operation and easy maintenance.

Ⅴ.Stacking machine
Function: automatic stacking of coils wrapped on pallets.
Basic Features
A stacking system 4 seasons for different reel sizes.
You can meet the requirements of different rolls stacking specificacion esmáximamente
Automatic ode Level Adjustment height by hydraulic stacking station.
Adopted reciprocated, safe, effective and practical structural. Wide range of stack height and application. Transport fast and stable operation.
Adopted the Pull-out structure with anti-deflection device positioning.
Basic technical parameters:

Basic parameters of coil:
Width 30-300mm
OD 900-1400mm
ID: Φ508 mm
Weight: ≤ 1000kg
Wrap Material: composite packing tape W = 90mm, OD = 450mm, ID = 55mm
Speed Ring: aprox.100r/min (adjustable)
Overlapping rate: Adjustable
Exit in power: aprox.5.0kw
