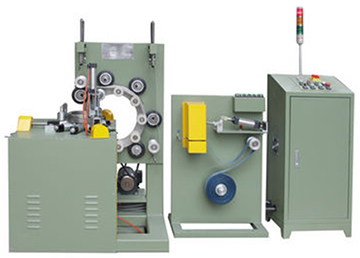

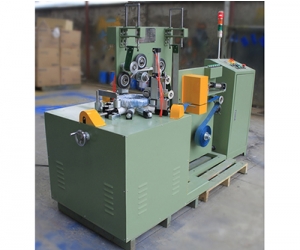

Máquina Embaladora de Rodamiento GW200

Máquina Embaladora de Rodamiento, Máquina Embaladora de Bobina deRodamiento

Descripción:
Description: The bearing wrapping machine is for bearing industry packing. It is able to do two layer packing with well sealed pack for moisture protecting and anti-dust. The bearing package is able to meet your different goal in transportation and selling.

Product Notes：

1. Conveyor for loading and unloading.

2. Manual and automatic working mode can be choosing.

3. The converter is adopted to adjust the overlap of the packing tape according to requirement.

4. Simple operation by imputing OD. ID. width & corrected parameter of coiled metal. Other parameters will be set automatically (PLC program).

5. Guardrails, soft starts and stop for safety operation.

6. Convenient for hoisting, safe and reliable.

7. Packaging tension is adjustable.

8. Cutting and clamping the packing tape automatically.

9. Automatic material feeding system(Optional).

Basic data of the steel coils：

Object material: steel coil

Coil width（W）：150～250mm

Coil outer diameter(OD)：550mm

Coil inner diameter（ID）：250mm

OD-ID:<300mm

Coil weight：50-200kg

Length of conveyor: 600mm

Packing material：

Rolled compound paper

W﹦90mm，OD=500mm    ID=50mm

LLDPE/PE/PVC

W=90mm    OD=100-150mm   ID=50mm

Ring speed： 10- 90r/min

Overlap rate：10%～90%

Power ：About 3.0Kw

Power supply：440V，Three-phase five line

Air supply：6～8kgf/cm2
