Máquina Embaladora de Cable GW300

Máquina Embaladora de Cable, Máquina Embaladora de Bobina de Cable

Notas del producto:

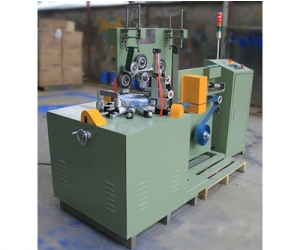

GW300 Máquina Embaladora de CableHorizontal

Aplicación:

Application:

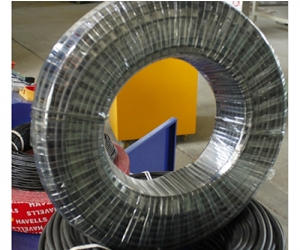

This series automatic horizontal cable wrapping machine for cable coil designed major for metallurgical industries. Could be widely used in the outside wrapping of circular articles such as steel cable, rubber tube, zinc coated steel, painted steel, wire coil material and so on.

It is wrapping with horizontal mode. It simplifies the wrapping procedure; lessen the labor density, especially suitable for large size or heavy cable coils. At the same time, it can associated production line or used independently

Features:

1. Excellent collections. Well-known brands are adopted for main components.

2. The speed of ring and rollers are adjustable by converter.

3.Separate electrical box for safe operation and technical testing and trouble-shooting.

4. Ring jog, reset, soft start and stop.

5. Level height of ring can be adjusted to suit different size of the coils.

6. Packing tape tension can be adjusted by special brake device.

7. Difference packing material can be choosing.

8. Up and down supporting rollers are available for different products.

9. Fixing device to avoid shaking in wrapping.

10. Tension of the packaging is adjustable by special brake device.

11. The overlap of packing tape can be adjusted by frequency converter.

12. The friction between wheel and ring is adjustable.

Datos técnicos:

ITEMS	GW200                      GW500
Object height	50-150mm                     50-200mm
Object OD	250-400mm                     400-700mm
Object ID	150-300mm                     200-300mm
Object weight	5-100kg                          10-100kg
Wrapping tape	PVC/LLDPE                   PVC/LLDPE
Ring speed	20～90r/min                       20～90r/min
Working level height	800mm                            800mm
Overlap rate	20%~90%                           20%~90%
Power output	About 1.5kw                        About 1.5kw
Power supply	380V, 3phase 5wires                 380V, 3phase 5wires
Air source	6～8kgf/cm2                            6～8kgf/cm2
