Máquina Embaladora de Neumático, Embaladora de Neumático
Notas del producto:
Application:

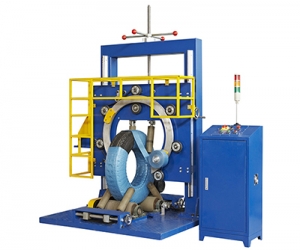

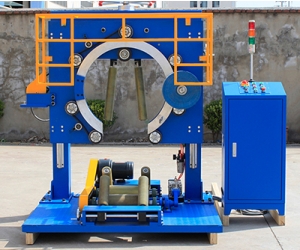

The GS series tyre wrapping machine is applicable for a wide range of tyres including car/bus /truck/rubber / wheel/bike/bicycle tyres and so on. The tyres can be well protected from influence of dust、water、rust, and avoid being bruised by crash、collision or other damages. The surface of the packaged tyres is neat& smooth and can well improve products competitiveness.
Features:
1.The machine is special designed for tyre packaging.
2. Height of turning ring can be adjusted to suit different size of the article.
3. Packing tape tension can be adjusted.
4. The overlap of packing tape can be adjusted by inverter.
5. Packing material automatically cutting.
6. Special mechanical brake for dispensing the material with best tension to avoid material folding.
7. Difference packing material can be choose.
8. Separate electrical box for safe operation, technical testing and trouble-shooting.
Datos técnicos:
ITEMS |
GS300 |
GS500 |
Object weight |
≤500mm |
≤1000mm |
Object height |
≤300mm |
≤500mm |
Object OD |
500-1000mm |
600-1200mm |
Object ID |
≥300mm |
≥400mm |
Roller speed |
2-4m/min |
2-4m/min |
Ring speed |
30-50r/min |
30-50r/min |
Suitable material |
Stretch film, Knit tape, paper tape etc. |
Stretch film, Knit tape, paper tape etc. |
Material width |
100-150mm |
100-150mm |
Material OD |
150mm |
150mm |
Material ID |
54mm |
54mm |
Power output |
About 3.0kw |
About 4.5kw |
Power voltage |
380V |
380V |
