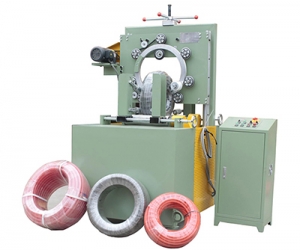

Embaladora de Bobina de Manguera GJ300

Máquina Embaladora de Bobina de Manguera , Máquina Embaladora de Manguera

Aplicación:

GJ series hose coil wrapping machine was designed for wrapping hose coils and other coiled commodities. Our product CE ,ISO 9001 approved. The wrapped package is well protected and sealed, and looks tidier. That can also be used for HDPE pipe coil wrapping and wire coil wrapping.

Features:

1. This hose coil wrapping machine is provided with double-rub wheel devices, it garrantees more safe, stable and energetic while you are working.
2. Over lap rate could be adjusted in accordance with your requirement.
3. Height of the ring centre could be adjusted.
4. Material tension could be adjusted.
5. Different packing materials are available.
6. The mechanical hand device can be choosing for automatic material supplication and cutting operation.
7. Special brake device is provided for avoid material folding.

Technical Date:

 ITEMS GJ200 GJ300 Package width ≤200mm ≤300mm Package OD 300-500mm 300-600mm Package ID ≥200mm ≥250mm Rotating speed About 50-70r/min About 45-60r/min Overlap scope 30%-70% 30%-70% Material Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm Power output About 1.0kw About 1.5kw Power voltage 380V/50Hz /3 phase 380V/50Hz /3 phase
