Aluminum profile packing line

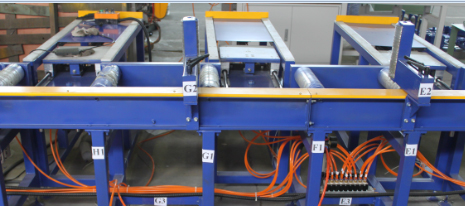

Plataforma de En-Alimentación y Fuera-Alimentación:

In-feeding&Out-feeding platform:

l  Feeding platform connect with roller conveyer for automatic feeding

l  All platform action are synchronizing in packing process.

l  Outlet plat from connect with outlet conveyor for packed product accumulation.

l  Weighing device is with outlet platform for weighting.

l  Control by separate device/remote

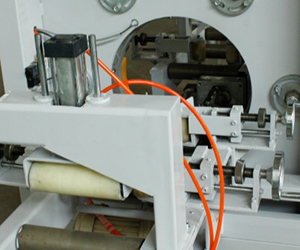

Automatic Wrapping Station:

l  Reinforce double-ring & double-rub wheel devices make working more safe stable & energetic.

l  Double driving system.

l  Friction between driving wheels and ring is adjustable.

l  Speed of the ring is adjustable by inverter.

l  Soft start and start.

l  Wrapping position reset.

l  Packing material tension could be adjusted.

l  Widely packing material adopted by material frame.

l  Protect guardrail for safety operation.

l  Overlapping is adjustable from 10%-90%

l  It makes machinery automatic operation.

l  Automatic material feeding for film.

l  Automatic material heating cutting for film.

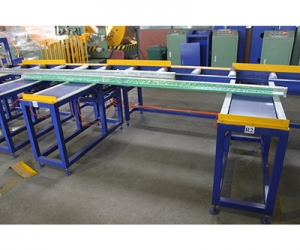

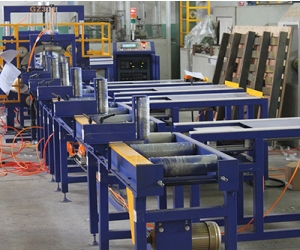

Conveyor System

l  Roller conveyors covered PU for protecting the surface of the product

l  It designed for connecting with in-feeding&out feeding platform.

l  Automatic entrance conveyor system and outlet conveyor system.

l  Conveyor adjustment by invertors.

l  Conveyors drive by motor with gear box.

l  Speed of the conveyors is adjustable by inverter.

l  Sensor detecting the objects for operation action.

Automatic profile wrapping protective System:

l  Automatic protective devices are able to avoid products shaking in wrapping.

l  Pressing down device and supportive rollers for fix the packaging position.

l  The action time is adjustable for difference packing purpose.

l  Two sets of press down device.

l  Two sets of the right and left protect device



Technical parameter:

Object size:

         OD: 50-300mm       Length:4000-7500mm    Weight:40-250kg

Entrance conveyer length: 6000mm with motor

Outlet conveyer length: 6000mm with motor

Wrapping Speed: 4～20m/min

Ring speed: 20-110r/min

Air supply: 5-7kgf.m2

Power output: about 3.5kw

Air supply

Weight:app.2100kg

Volume: App.14-16CBM

Power voltage: AC 380v,50Hz, 3phase

Material:

LLDPE stretch film/PE film

Width: 150-300mm

OD: 100-250mm

ID: 50mm
