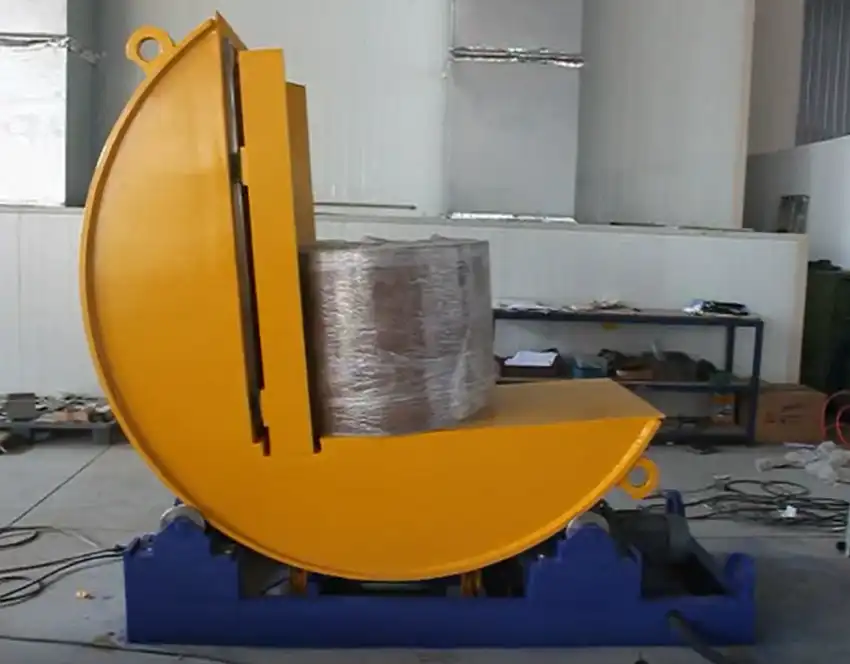

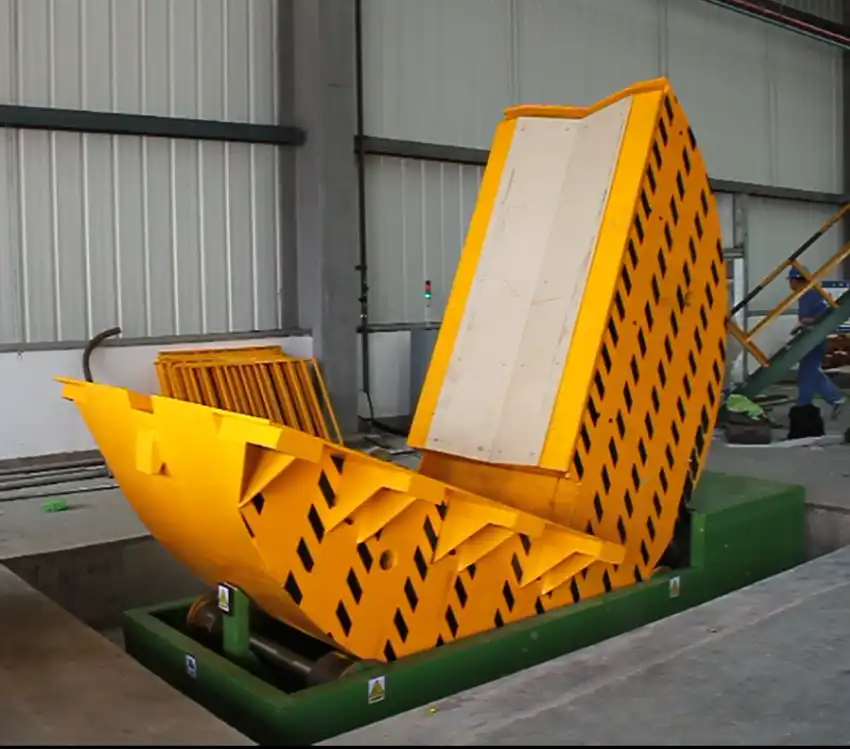

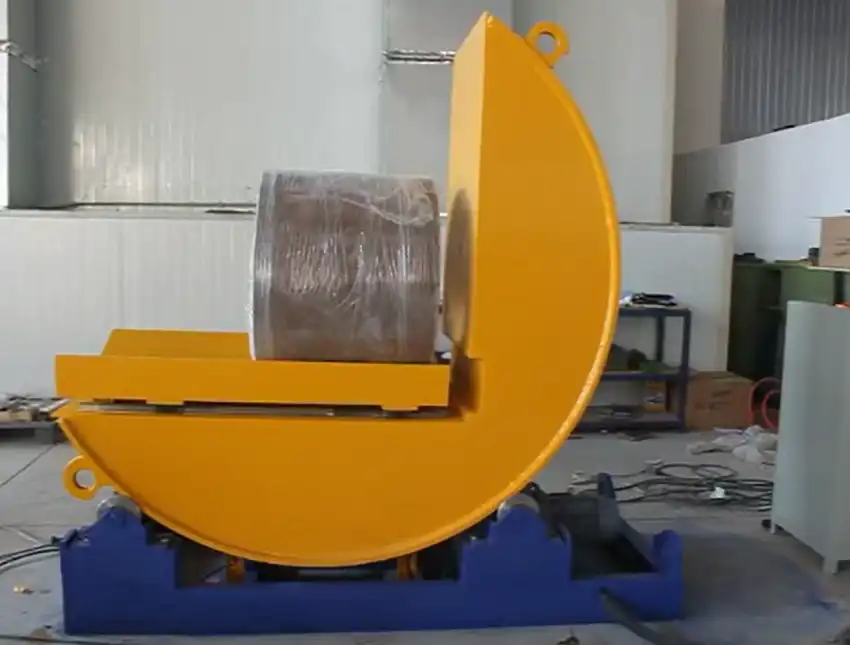

Upender With Sliding Table

Mechanical Upenders, often referred to as coil positioners, are used across various manufacturing and storage applications to rotate, turn, or position heavy or delicate loads. Available with either electric or hydraulic drive systems, upenders are equipped with a robust brake that can halt and hold the load in any desired position. By lifting and repositioning products, upenders enhance accessibility during manufacturing and assembly processes, thereby creating a safer work environment and reducing risks associated with manual labor. These devices have proven to be highly effective in numerous steel handling applications.

Category:

Features:

  • Separate control panel and electrical box.
  • Speed adjustment via an inverter.

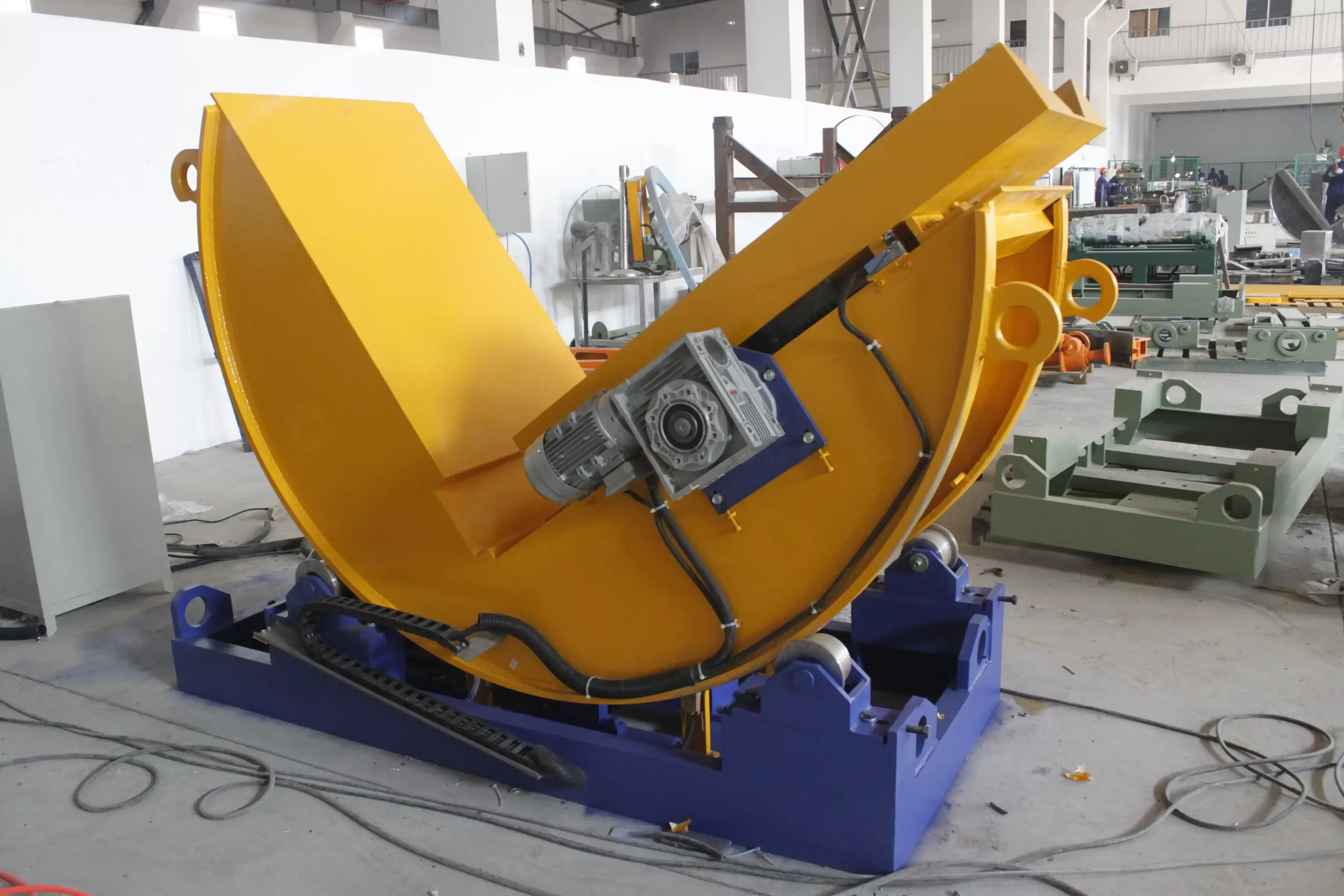

  • Solid construction featuring a worm speed reducer.
  • Safety operation is ensured through the use of electric and mechanical limit switches.
  • Positioning lock function allows the machine to halt in any position.
  • Simple routine maintenance.
  • Position retention during power outages for safe operation.
  • Robust and long-lasting machine build.
  • Equipped with a slide table system to manage the horizontal movement of the stretching action.
Adjustable , Multipurpose Coil Tilter with Slid Table

Wire Coil size

OD:1400mm
Width:1200mm

Working table

1400x1200mm

Max loading

5T

Turn-over speed

90ยบ single way turn-over

Perspective

APP. L3000 x W2200 x H2600mm
Weight =4T

Power voltage

AC 380V, 60HZ
