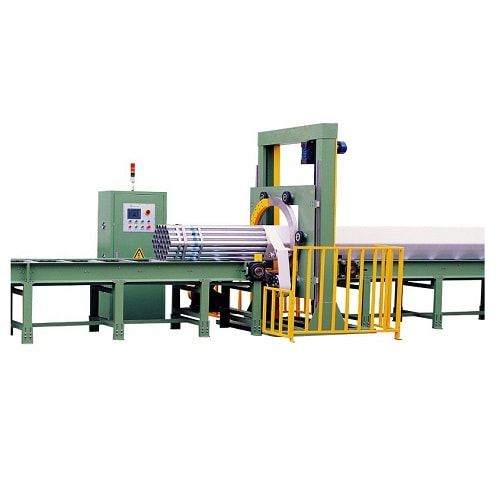

Pipe Horizontal Orbital Wrapping Machine

The steel tube packing machine features an automatic film draw back tension control device, accommodating both small and large bundle packing. This machine utilizes stretch wrapping to ensure the bundles are securely protected and sealed, making it ideal for maritime transportation of bars, sheets, and similar items. Additionally, Fhope offers an automatic packing line that can seamlessly integrate with your existing production line and process.

The ring designing is 5 year warranted since ring structure plays an important role in the series of theĀ orbital horizontal stretch wrapper machine. Fhope provide wrapping station fro forklift of the tray package. Besides, the wrapper can also be loaded and moved back. So that it is able wrapping the package in manual or semi-automatic horizontal orientation with horizontal direction.

In fact, the obvious advantage is that the time cost will be greatly shorten. Fhopepack takes only a minute, and one worker saves about 10 minutes more than manual packing. In this case, at least 50% of the labor cost will be saved. At the same time, the machine can also reduce the requirements of other banded materials and expensive cartons.It is almost impossible to move and slide in the course of transportation simultaneously

Pipe horizontal stretch wrapper packing machine

Voltage

AC 380V/50/60Hz( or your requirement)

Power (KW)

6.0

Bunlde OD(mm)

300-2000

Pipe length(mm)

2000-8000

Bundle weight(Kg)

100-5000

Packing material

PE/Stretch film/knit belt/VCI paper…

Turning speed(r/min)

20-60

Wrapping speed

2-12m/min

Overlapping rate

20-90%
