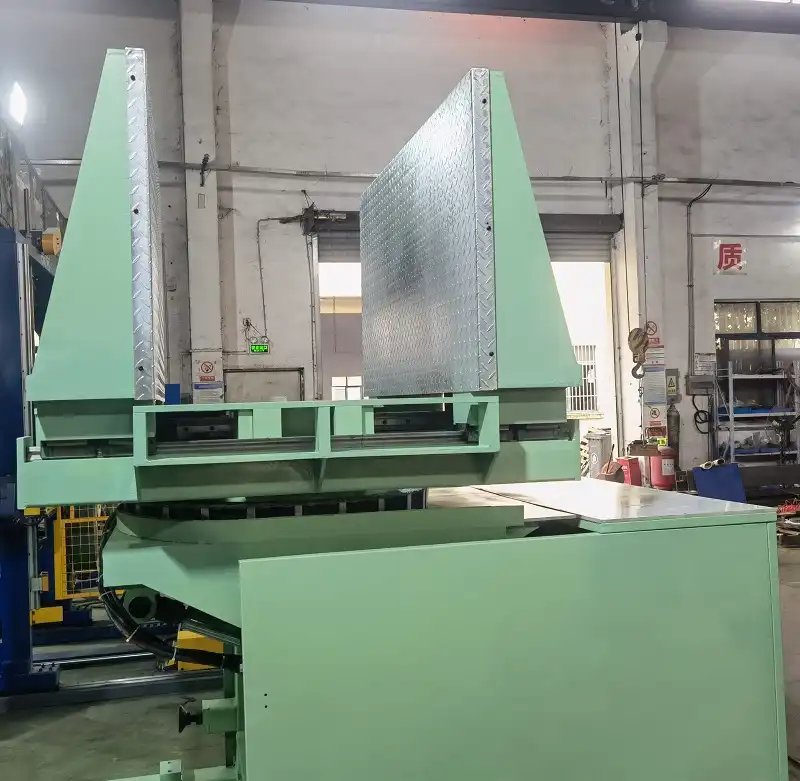

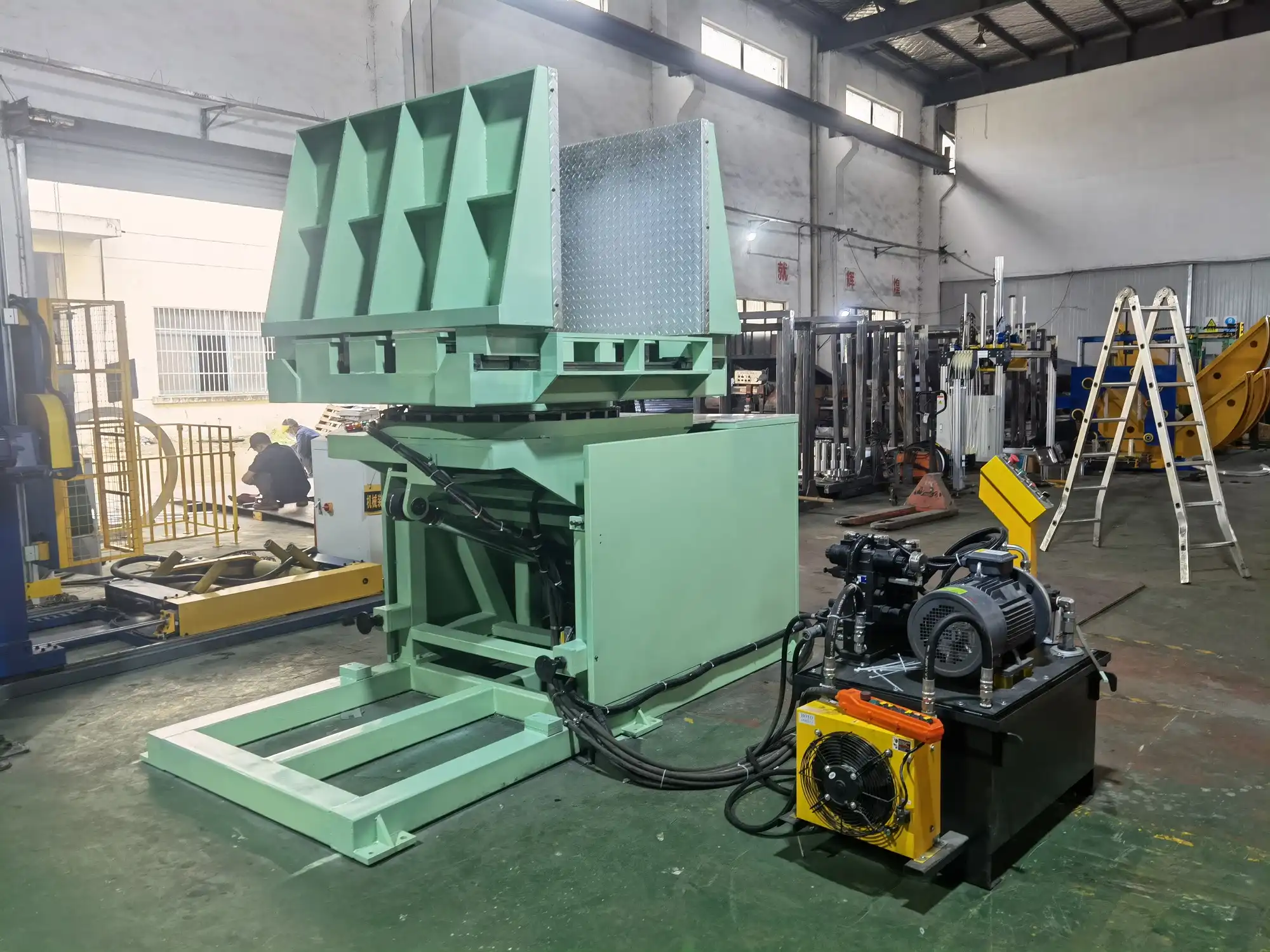

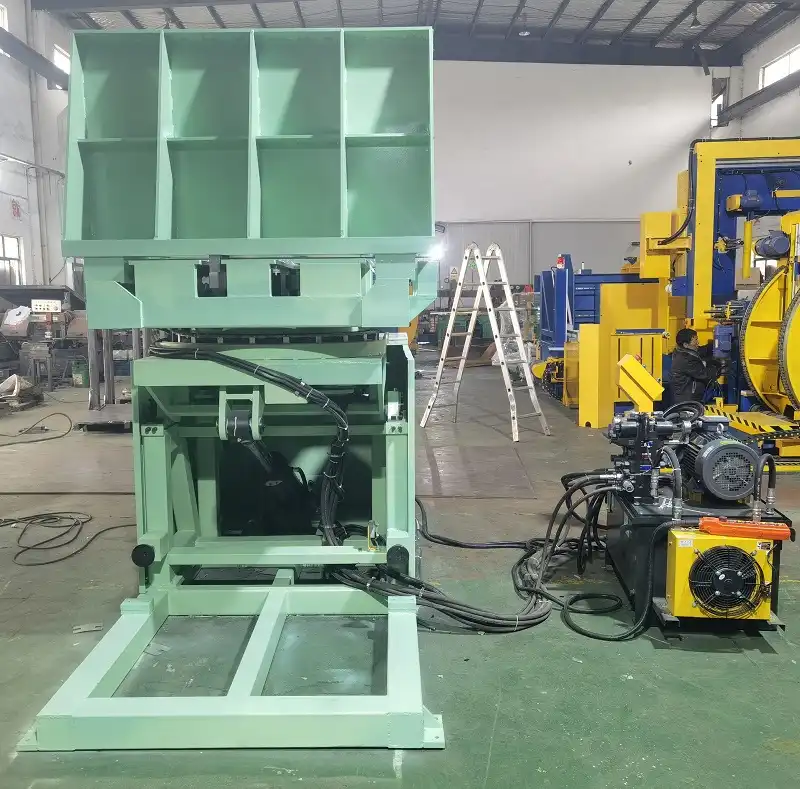

Heavy Load Reclining Pallet Inverter

The heavy load reclining pallet inverter offers a highly efficient solution for swiftly changing out pallets under heavy loads or replacing damaged ones. This inverter utilizes a sophisticated recline-then-rotate method that carefully tips the load through 90 degrees onto its back. This positioning ensures that the load is perfectly centered over a turntable, facilitating a smooth and secure rotation process.

Crafted with flexibility in mind, the inverter comes with customizable clamping tables that can be adjusted to any width, accommodating single or dual clamping systems depending on the specific needs of your operations. This adaptability makes the inverter ideal for various industrial contexts where different load sizes and types are common.

The design of this inverter not only enhances operational efficiency by reducing the time and effort needed to manage pallets but also minimizes the risk of damage to goods during the handling process. It is particularly valuable in environments like manufacturing, warehousing, and distribution centers, where handling heavy loads safely and efficiently is crucial. This machine ensures that even the most challenging loads can be managed with ease, boosting productivity and safeguarding the integrity of the goods.

Category:

1. Versatile Load Handling:

  • Designed to efficiently change pallets from the bottom or replace broken pallets, particularly suitable for wider loads. The inverter can quickly and easily manage these tasks, enhancing operational efficiency.

2. Advanced Movement Capability:

  • The recline inverter is capable of lifting and turning the load vertically by 90 degrees, rotating it further by 180 degrees at the top, and then returning it to the original position. This comprehensive movement allows for thorough handling and repositioning of loads.

3. Clamping Options:

  • Available in two clamping designs: single or dual clamping. Our team assists customers in selecting the appropriate version based on the dimensions (length x width x height) and weight of the load.

4. Customization and Integration:

  • The design considers the specific handling methods used in the customer’s workshop, ensuring that the pallet inverter works seamlessly with existing handling tools such as lifters and forklifts.

5. Automation and Safety:

  • Typically provided as a fully automated system with safety guards, constructed to meet individual user requirements. Includes a manual override option for testing maximum load capacity.

6. Proven Track Record:

  • Historically used across various industries for handling paper, boxes, bottles, panels, with capabilities to handle loads up to 15 tons in the steel industry. Machines can be customized to specific requirements.

7. Construction and Installation:

  • The finishes of our inverters are painted for durability. The reclining and rotating mechanisms are designed to handle wider and heavier loads that are challenging to rotate with standard inverters. The system features adjustable single or twin clamping systems with sensors to measure load height and required clamping pressure. For enhanced stability during operation, the reclining pallet inverter is typically installed in a fixed position on the ground.
Steel sheet pallet chnaging machine & upender
