2．Basic parameters of the machine
The basic parameters are as follows, but not binding to this:

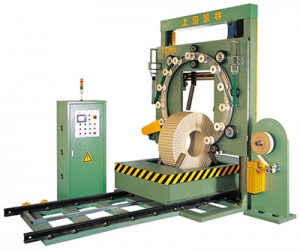

2.1 Wire coil wrapping machine form
² Hoisting in and out the object.

2.2 Basic features of the machine
l PLC & HMI are adopted.
l Trolley for loading and unloading.
l Manual and automatic working mode can be choosing.
l The converter is adopted to adjust the overlap of the packing tape according to requirement.
l Simple operation by imputing OD, ID, width & corrected parameter of coiled metal. Other parameters will be set automatically.
l Guardrails, soft starts and stop for safety operation.
l Convenient for hoisting, safe and reliable.
l Overloading protection.
l Both Electric limitation and mechanical limitation are for operation system.
l The friction between wheels and ring is adjustable.
l Height of the turning ring could be adjusted for different OD by motor.
l Supportive rolls derived by motors for wrapping protecting.
l Packaging tension is adjustable.
l The rollers are wrapped by polyurethane
l Cut the packing tape automatically by program according to different coil.
l Indicator alarms automatically when trouble occurs. Trouble can be shown automatically.
l Special brake for the tape release device is to avoid material folding.
l Difference packing material can be choosing.

Basic data of the wire coils：
Object material: Wire coil
Coil width（W）：280～800mm
Coil outer diameter (OD) 800-1300mm
Coil inner diameter（ID）：700-1200mmm
Coil weight：100-1000kg
Packing material：

Rolled compound paper/LLDPE film
W﹦120mm，OD:200-450mm ID=50mm
Ring speed： 20- 70r/min
Overlap rate：100%～90%
Power ：About 7.0Kw
Power supply：420V，Three-phase five line
Air supply：6～8kgf/cm2



 The steel coil wrapping machine provider installs, builds and plans solutions which can be coordinated for the customer’s specific needs down to the specification details. Some examples are the place-preserving, totally coil packaging line automatic. Handling equipments connects with slitting line which will be able to execute complicated wrapping and palletizing to warehouse .
